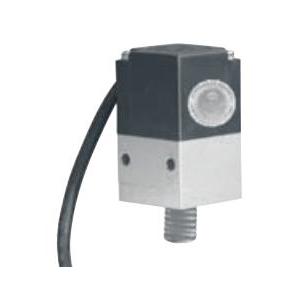

YJM-2系列车用压力继电器 - 阳雷气动液压（上海）有限公司

　　YJM-2压力继电器所接受的气信号压力较高，它利用气压信号变化来接通或断开电路。它具有结构简单，膜片动作滞后小，回差和动作重复精度高等优点。
YJM-2 pressure relay receives air signal with high pressure, the relay close/opens circuit by means of the changes in the air pressure signals.
The relay features a simplestructure small retardation of membrane action and high repeatability preciston in hysteresis error and ction.

图形符号：

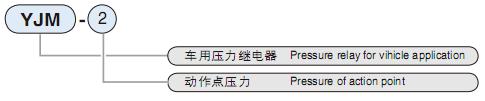

型号注释：

技术参数：

    工作介质 Working medium:干燥洁净的压缩空气 Dry and clean compressed air
    结构形式 Wtructure: 膜片式 Membrance
    节    点 Pitch point:常开、常闭微动开关 Normal open/close micro switch
    最高耐压力 Max pressure bearing: 1MPa
    工作温度范围 Working tempt range(℃) :-40～+80(在不冻结条件下 On ondition of no freezing)
    动作点压力 Action point pressure(MPa):0.18±0.005
    调节压力范围 Working pressure range(MPa):0.1～0.3
    回差精度 Precision of hysteresis error(MPa): ±0.008
    额定电流 Nominal current(A):5
    动作重复精度 Precision of action repeata bility(MPa):±0.005
    气源接口 Connect to air supply:G1/8(或用户定)(Up to user)
