产品名称：AG-GAG系列 二位三通多用途(管式/板式)电磁阀编 号：153731-173
型 号：153731-173
更新时间：2011.03.13
产品备注：样本及产品销售事宜，请致电我公司 021-56822441 56824336
点击查看大图片

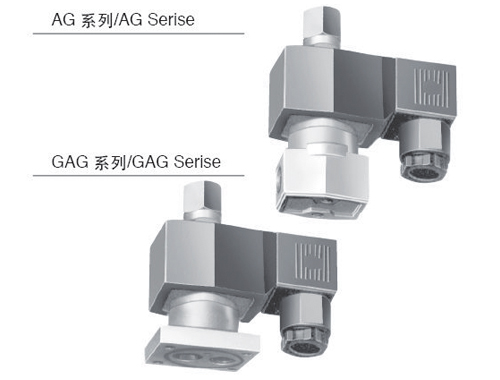

AG-GAG系列 二位三通多用途(管式/板式)电磁阀
 |
产品特点：
AG-GAG系列多用途电磁阀是引进日本CKD公司产品，适用于多种介质（空气、煤气、水及各种油类）及真空控制，性能好，寿命长，应用范围广。
AG-GAG series solenoid valves are introduced from CKD CO, LTD of Japan. They are suited to various media ( air, gas, water and oil of all kinds) and vacuum control. They feature high performance, long cycle life, widely application. |
图形符号：

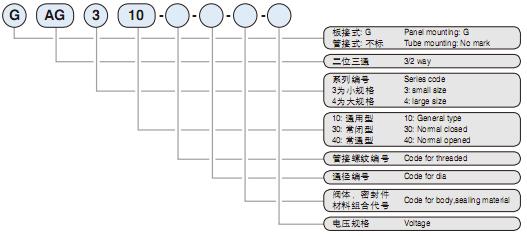

型号注释：
技术参数：
|
型号\项目 |
接管
螺纹 |
公称通径mm |
CV值 |
有效截面积mm2 |
最高工作压差(MPa) |
|
空气 |
水、煤油 |
油(50cst) |
|
上阀口 |
下
阀
口 |
上
阀
口 |
下
阀
口 |
上
阀
口 |
下阀口 |
AC |
DC |
AC |
DC |
AC |
DC |
|
AG310-1-1
AG310-1-2 |
GAG310-1-1
GAG310-1-2 |
ZG1/8 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
0.70 |
0.07 |
0.70 |
0.70 |
6.0 |
6.0 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.4 |
0.4 |
0.4 |
0.4 |
2.5 |
2.0 |
|
AG310-2-1
AG310-2-2
AG410-2-1
AG410-2-2 |
GAG310-2-1
GAG310-2-2
GAG410-2-1
GAG410-2-2 |
ZG1/4 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
0.70 |
0.70 |
0.70 |
0.70 |
6.0 |
6.0 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.4 |
0.4 |
0.4 |
0.4 |
2.5 |
2.0 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
1.00 |
0.70 |
1.00 |
0.70 |
4.0 |
3.0 |
|
2.3 |
2.3 |
0.19 |
0.19 |
3.5 |
3.5 |
0.70 |
0.4 |
0.70 |
0.4 |
2.5 |
1.5 |
|
AG410-3-1
AG410-3-2 |
GAG410-3-1
GAG410-3-2 |
ZG3/8 |
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
1.00 |
0.70 |
1.00 |
0.70 |
4.0 |
3.0 |
|
2.3 |
2.3 |
0.19 |
0.19 |
3.5 |
3.5 |
0.70 |
0.4 |
0.70 |
0.4 |
2.5 |
1.5 |
|
AG330-1-1
AG330-1-2 |
GAG330-1-1
GAG330-1-2 |
ZG1/8 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
|
AG330-2-1
AG330-2-2
AG430-2-4
AG430-2-5 |
GAG330-2-1
GAG330-2-2
GAG430-2-4
GAG430-2-5 |
ZG1/4 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
|
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
|
3.5 |
3.0 |
0.40 |
0.31 |
8.2 |
6.0 |
0.40 |
0.40 |
0.40 |
0.40 |
0.40 |
0.40 |
|
AG430-3-4
AG430-3-5 |
GAG430-3-4 GAG430-3-5 |
ZG3/8 |
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
0.70 |
|
3.5 |
3.0 |
0.40 |
0.31 |
8.2 |
6.0 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
AG340-1-1
AG340-1-2 |
|
ZG1/8 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.70 |
0.45 |
0.70 |
0.60 |
0.30 |
0.20 |
|
AG340-2-1
AG340-2-2
AG440-2-1
AG440-2-3
AG440-2-4 |
|
ZG1/4 |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
0.70 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
0.70 |
0.45 |
0.70 |
0.60 |
0.30 |
0.20 |
|
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
1.20 |
0.75 |
1.50 |
1.00 |
1.00 |
0.45 |
|
2.0 |
3.0 |
0.15 |
0.31 |
2.7 |
6.0 |
1.20 |
0.75 |
1.50 |
0.90 |
1.00 |
0.45 |
|
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.40 |
0.30 |
0.50 |
0.30 |
0.30 |
0.20 |
|
AG440-3-1
AG440-3-3
AG440-3-4 |
|
ZG3/8 |
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
1.2 |
0.75 |
1.50 |
1.00 |
1.00 |
0.45 |
|
2.0 |
3.0 |
0.15 |
0.31 |
2.7 |
6.0 |
1.20 |
0.75 |
1.50 |
0.90 |
1.00 |
0.45 |
|
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.40 |
0.30 |
0.50 |
0.30 |
0.30 |
0.20 |
|
AG340-1-1 |
ZG1/8(进气口） |
1.5 |
1.5 |
0.09 |
0.09 |
1.6 |
1.6 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
0.7 |
|
AG340-1-2 |
2.0 |
2.0 |
0.15 |
0.15 |
1.6 |
1.6 |
0.45 |
0.45 |
0.7 |
0.6 |
0.3 |
0.2 |
|
AG340-2-1 |
ZG1/4(进气口） |
1.5 |
1.5 |
0.09 |
0.09 |
2.7 |
2.7 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
AG340-2-2 |
2.0 |
2.0 |
0.15 |
0.15 |
1.6 |
1.6 |
0.7 |
0.45 |
0.7 |
0.6 |
0.3 |
0.2 |
|
AG440-2-1 |
2.0 |
2.0 |
0.31 |
0.15 |
2.7 |
2.7 |
1.2 |
0.75 |
1.5 |
1.0 |
1.0 |
0.45 |
|
AG440-2-3 |
2.0 |
3.0 |
0.15 |
0.15 |
2.7 |
6.0 |
1.2 |
0.75 |
1.5 |
0.9 |
1.0 |
0.45 |
|
AG440-2-4 |
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.4 |
0.3 |
0.5 |
0.3 |
0.3 |
0.2 |
|
AG440-3-1 |
ZG3/8(进气口） |
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
2.7 |
1.2 |
0.75 |
1.5 |
1.0 |
1.0 |
0.45 |
|
AG440-3-3 |
2.0 |
2.0 |
0.15 |
0.15 |
2.7 |
6.0 |
1.2 |
0.75 |
1.5 |
0.9 |
1.0 |
0.45 |
|
AG440-3-4 |
3.0 |
3.0 |
0.31 |
0.31 |
6.0 |
6.0 |
0.4 |
0.3 |
0.5 |
0.3 |
0.3 |
0.2 |
|
项目 |
AB310 GAB310 |
AB410 GAB410 |
|
额定电压(V) |
AC:110,220,24, DC:12,24,48,100 |
|
频率(Hz) |
50 |
60 |
50 |
60 |
|
视在功率(VA) |
起动时 |
20.0 |
16.0 |
35.0 |
27.0 |
|
保持 |
14.0 |
11.0 |
22.0 |
17.0 |
|
消耗功率(W) |
AC |
6.0 |
4.2 |
8.3 |
6.2 |
|
DC |
11.0 |
11.0 |
11.0 |
11.0 |
|
许可电压范围 |
±10% |
